[VBA] Excel Export Data With Sep and Fixed Values

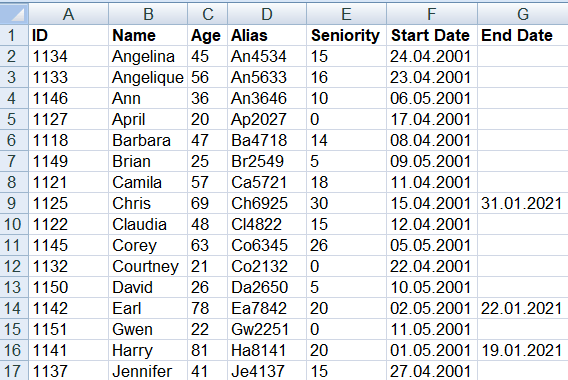

Records Example in Excel:

Data Sample
  1. Macro with fixed length for ex. fields ‘Name’ and ‘Alias’
Sub FixedData()
Sheets("Data").Select

Dim X1, X2 As Long
'Last Letter Counter
Dim LCount1, LCount2 As String
'Fixed Value- Last Letter
Dim Len1, Len2 As Long

With ActiveSheet.UsedRange
X1 = 2
X2 = .Cells(.Cells.Count).Row

'--Fixed value for Name
For X1 = 2 To X2
    'Adding extra space-sign for InStrRev
    .Cells(X1, 2) = .Cells(X1, 2) + Space(1)
    'Last letter counter
    LCount1 = InStrRev(.Cells(X1, 2), " ")
    'Substraction result
    Len1 = 50 - LCount1
    'Fixed value by Space
    .Cells(X1, 2) = .Cells(X1, 2) + Space(Len1)

'--Fixed value for Alias
    .Cells(X1, 4) = .Cells(X1, 4) + Space(1)
    LCount2 = InStrRev(.Cells(X1, 4), " ")
    Len2 = 30 - LCount1
    .Cells(X1, 4) = .Cells(X1, 4) + Space(Len2)
Next X1
End With

End Sub

2. Saving Method with Pipe Separator

Sub SavingFixedValuesFile(FullFileName As String, _
StartRow As Long, LinesCounter As Long)

Dim LineWriter As String
Dim RowIndex, LastRow As Long
'Dim LinesCounter As Long
Dim FNum As Integer

Sheets("Data").Select
LastRow = Sheets("Data").UsedRange.Rows.Count

If LastRow < 1 Then
MsgBox "No data was found, Worksheet 'Data' is empty", _
vbCritical, "Rows Check"
Exit Sub
End If

FNum = FreeFile
Open FullFileName For Output As FNum

For RowIndex = StartRow To StartRow + LinesCounter
    LineWriter = UCase(Cells(RowIndex, 2)) & "|" & _
                        Cells(RowIndex, 4) & "|" & _
                        Trim(UCase(Cells(RowIndex, 6)))

    LineWriter = RTrim(LineWriter)
    Print #FNum, LineWriter
Next RowIndex
Close #FNum

End Sub

3. Exporting files with a set amount of records in each

Sub ExportFiles()
Sheets("Data").Select

Dim RecNum, RecNumPerFile As Long
Dim EndOfFile As Long
Dim FileNum, FileCounter As Long
Dim FileDat As String

RecNumPerFile = 10
RecNum = Sheets("Data").UsedRange.Rows.Count
FileCounter = _
WorksheetFunction.RoundUp(RecNum / RecNumPerFile, 0)
FileDat = "_" & _
Mid(Left(Excel.Application.UserLibraryPath, 16), 10, 7) _
+ Format(Now(), "_yyyymmdd_hhmmss")

MsgBox "Generating " & FileCounter & " files...", _
vbInformation, "Export Files"

For FileNum = 1 To FileCounter

'First File (from Row = 2)
If FileNum = 1 Then
SavingFixedValuesFile FullFileName:=ThisWorkbook.Path & _
"\FileNo" & FileNum & FileDat & ".txt", _
StartRow:=2, LinesCounter:=8

'Last File
ElseIf FileNum = FileCounter Then
EndOfFile = RecNum - (RecNum - 1) * 10
SavingFixedValuesFile FullFileName:=ThisWorkbook.Path & _
"\FileNo" & FileCounter & FileDat & ".txt", _
StartRow:=((FileCounter - 1) * 10) + 1, _
LinesCounter:=EndOfFile - 1

'Next
Else:
SavingFixedValuesFile FullFileName:=ThisWorkbook.Path & _
"\FileNo" & FileNum & FileDat & ".txt", _
StartRow:=((FileNum - 1) * 10) + 1, _
LinesCounter:=9
End If

Next FileNum

End Sub
